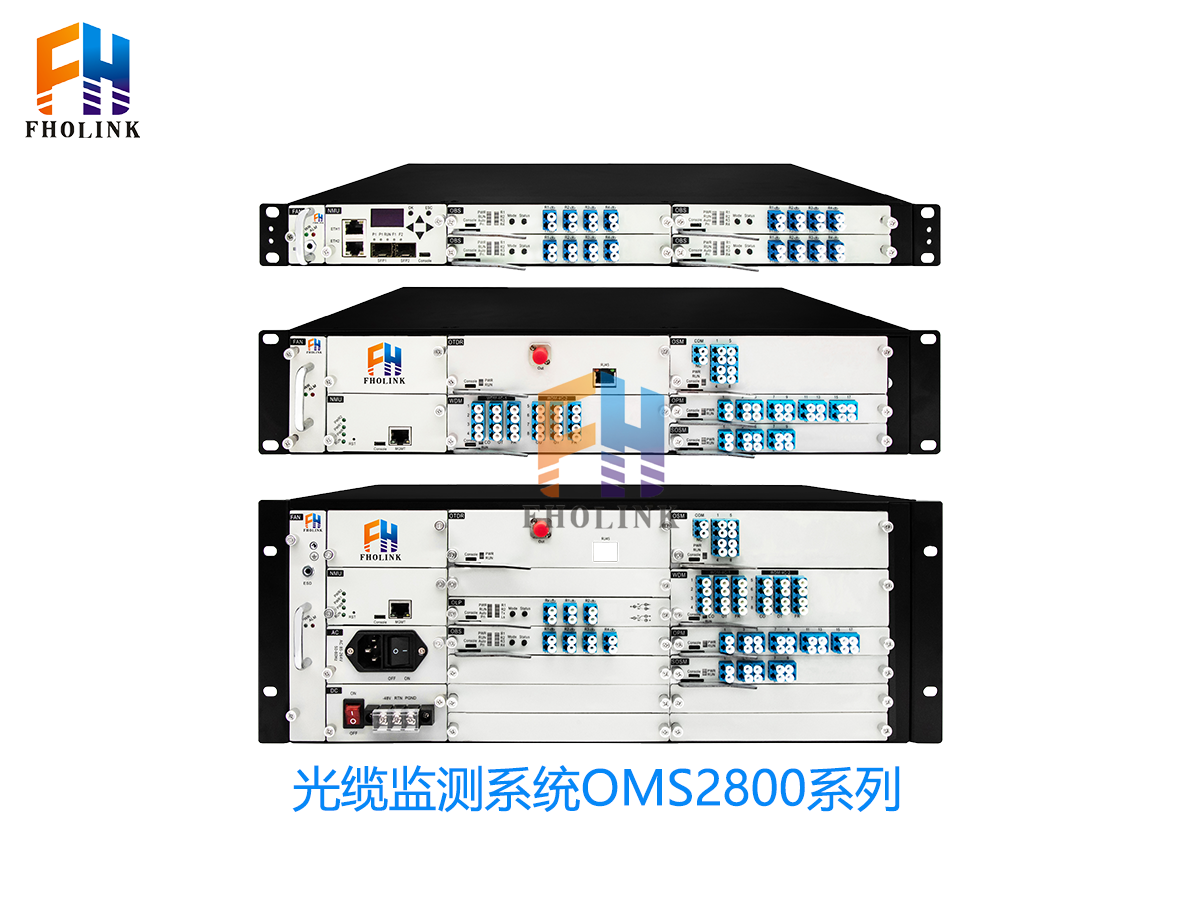

Optical Cable Monitoring System OMS2800 Series
Product Overview
The Fholink OMS2800 series is an optical cable monitoring system that integrates monitoring, alarming, fault analysis, localization, fault management, line maintenance, and line management. It ensures the secure and efficient operation of optical cable networks by providing 24/7 automated monitoring of communication cables and automatic optical fiber switching protection. The system promptly and accurately reports sudden cable faults, effectively reducing outage duration. It proactively detects potential failures that could lead to communication interruptions, enabling accurate early warnings and preventive maintenance to avert disruptions before they occur.
Product Features
1.High Integration: Service cards are meticulously designed to be compact and high-density.
2.Strong Versatility: Compatible with optical transmission, optical protection, and optical cable monitoring system applications.
3.Diverse Product Forms: Available in 1U, 2U, and 4U configurations to suit different application combinations.
4.Flexible Upgrades and Expansion: Employs a plug-and-play card design for easy use, convenient upgrades, and short deployment cycles for new functional cards.
Product Applications
1.Carrier Optical Networks
2.Optical Cable Monitoring for Government and Enterprise Private Networks
Technical Parameters
| Optical Cable Monitoring System OMS2800 Series | ||||
| Product Model | FH-OMS2804 | FH-OMS2808 | FH-OMS2816 | |
| Specifications | Provides 4+1 board slots (4 service slots and 1 management card), supports rear dual power supply (220 V/AC, 50Hz; -48 V/DC, optional), with built-in fan. | Provides 8+2 board slots (8 service slots and 1+1 protected management cards), supports rear dual power supply (220 V/AC, 50Hz; -48 V/DC, optional), with built-in fan. | Provides 16+2 board slots (16 service slots and 1+1 protected management cards), supports front dual power supply (220 V/AC, 50Hz; -48 V/DC, optional), with built-in fan. | |
| Main Service Board | OTDR Board, Optical Switch Routing Board, Optical Power Collection Board, Optical Source Board, Wavelength Division Multiplexing Board, Filter Board, Optical Protection Board | |||
| Network Management Method | 2 optical and 2 electrical Gigabit auto-negotiation ports, 6 manual buttons, supports multiple network management methods including CLI, Telnet, SNMP, and Web. | |||
| Product Dimensions | 44*483*330 mm | 88*483*330 mm | 176*483*260 mm | |
| Environmental Requirements | Operating Temperature | -5℃~+60℃ | ||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Relative Humidity | 5% ~ 95% Non-condensing | |||
| Power Supply Requirements | 220V AC/110V AC；48V DC/-60V DC；(Optional) | |||
| Safety & EMC | Compliant withFCC、UL、CE、TUV、CSA Standard | |||
| Power Consumption | <150W | <250W | <350W | |
-
