DWDM Passive Coarse Wavelength Division Multiplexing Equipment
Product Overview
Fholink's DWDM Passive Dense Wavelength Division Multiplexing equipment is a fiber capacity expansion solution. By adopting DWDM technology, it multiplexes 2 to 32 optical signal channels onto a single fiber for transmission, effectively addressing fiber resource scarcity for users.
Fholink passive WDM equipment is widely used in carrier networks, government and enterprise private networks, and data centers.
Product Features
1. Low insertion loss and high isolation
2. Low polarization-dependent loss with high stability
3. Customizable channel configurations, supporting 2 to 32 wavelengths

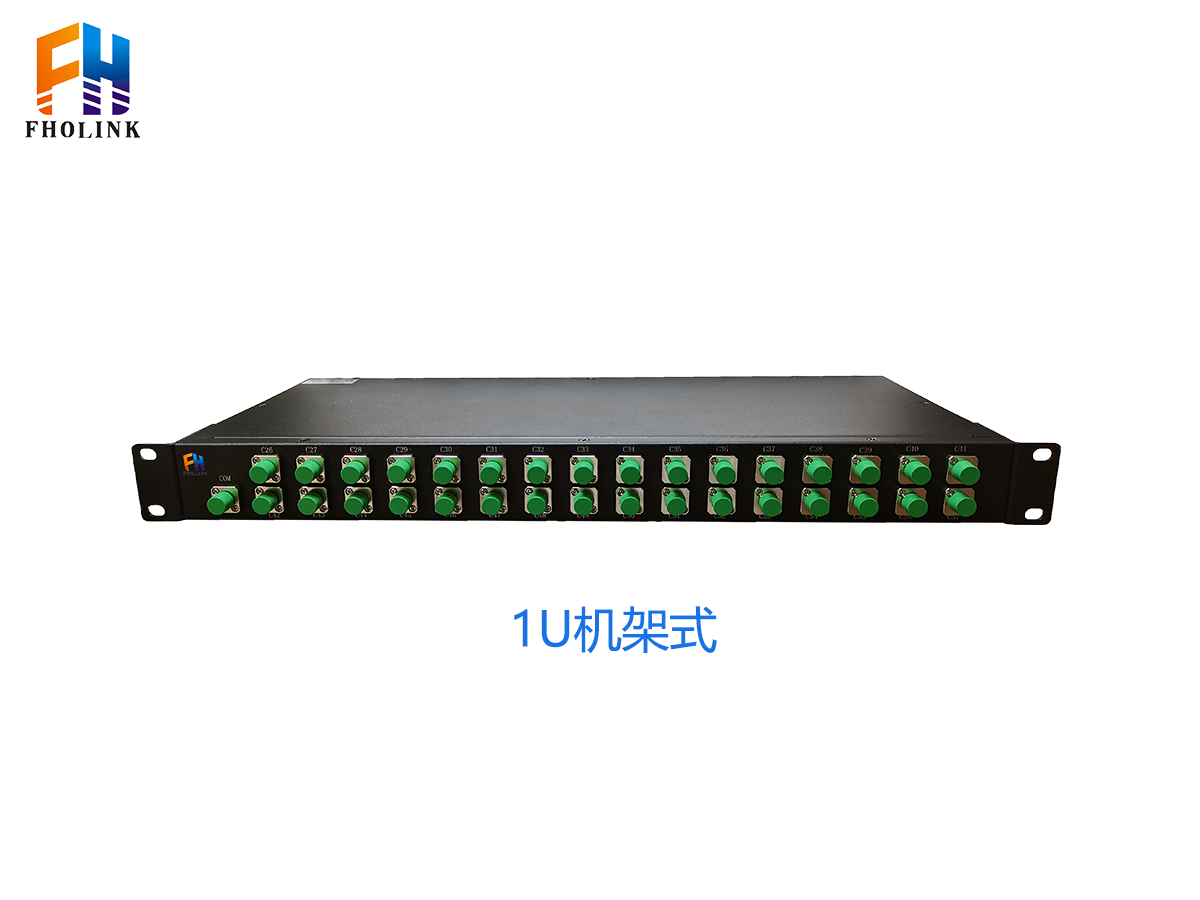

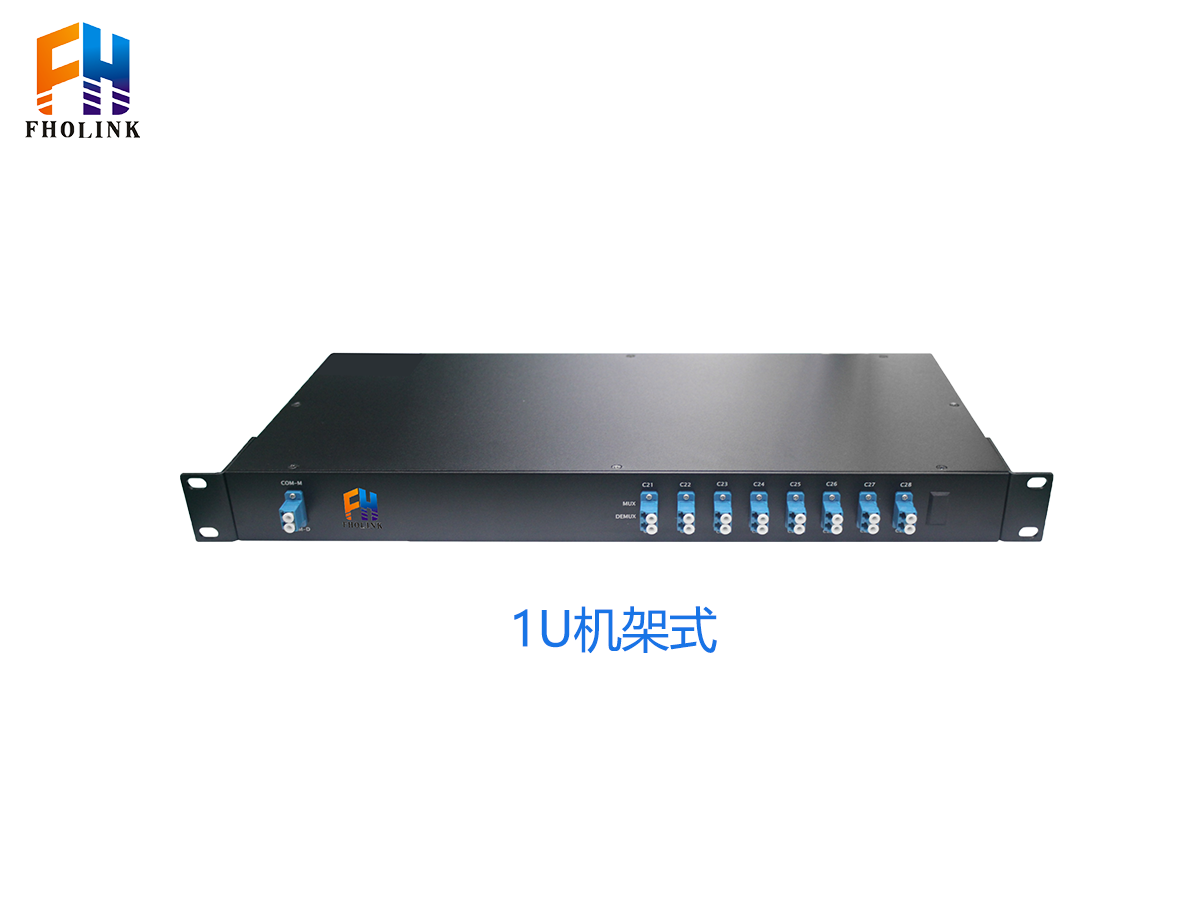

4. Diverse packaging options, primarily including 1U rack-mounted and ABS box types
Technical Parameters
| DWDM Passive Coarse Wavelength Division Multiplexing Equipment | |||||
| Parameters | Unit | Data | |||
| Channel Spacing | GHz | 100GHZ | |||
| Wavelength Range | C- band ITU channels | ||||
| Center Channel | nm | ITU | |||
| Channel | ch | 4 | 8 | 16 | |
| Passband Width | nm | ≥ +/- 0.13 | |||
| Passband Ripple | dB | ≤ 0.5 | |||
| Channel Loss | dB | ≤1.5 | ≤2.5 | ≤4.8 | |
| Insertion Port Loss | dB | ≤1.8 | ≤2.8 | ≤5.0 | |
| Isolation | Adjacent Channel | dB | ≥30 | ||
| Non-adjacent Channel | dB | ≥ 40 | |||
| Polarization Dependent Loss (PDL) | dB | ≤ 0.2 | |||
| Polarization Mode Dispersion (PMD) | ps | ≤ 0.2 | |||
| Directivity | dB | ≥ 50 | |||
| Return Loss | dB | ≥ 45 | |||
| Optical Power Handling | mW | ≤ 500 | |||
| Operating Temperature | 0C | -5 to 70 | |||
| Storage Temperature | 0C | -40 to +85 | |||
| Fiber Type | NA | SMF-28e+ | |||
| Package Type | mm | 1U, (L)230×(W)440×(H)44 | |||
Product Applications
1. Fiber capacity expansion in DWDM systems
2. Carrier metropolitan area networks
3. Government and enterprise private network backbone
4. High-speed data center interconnection
-
