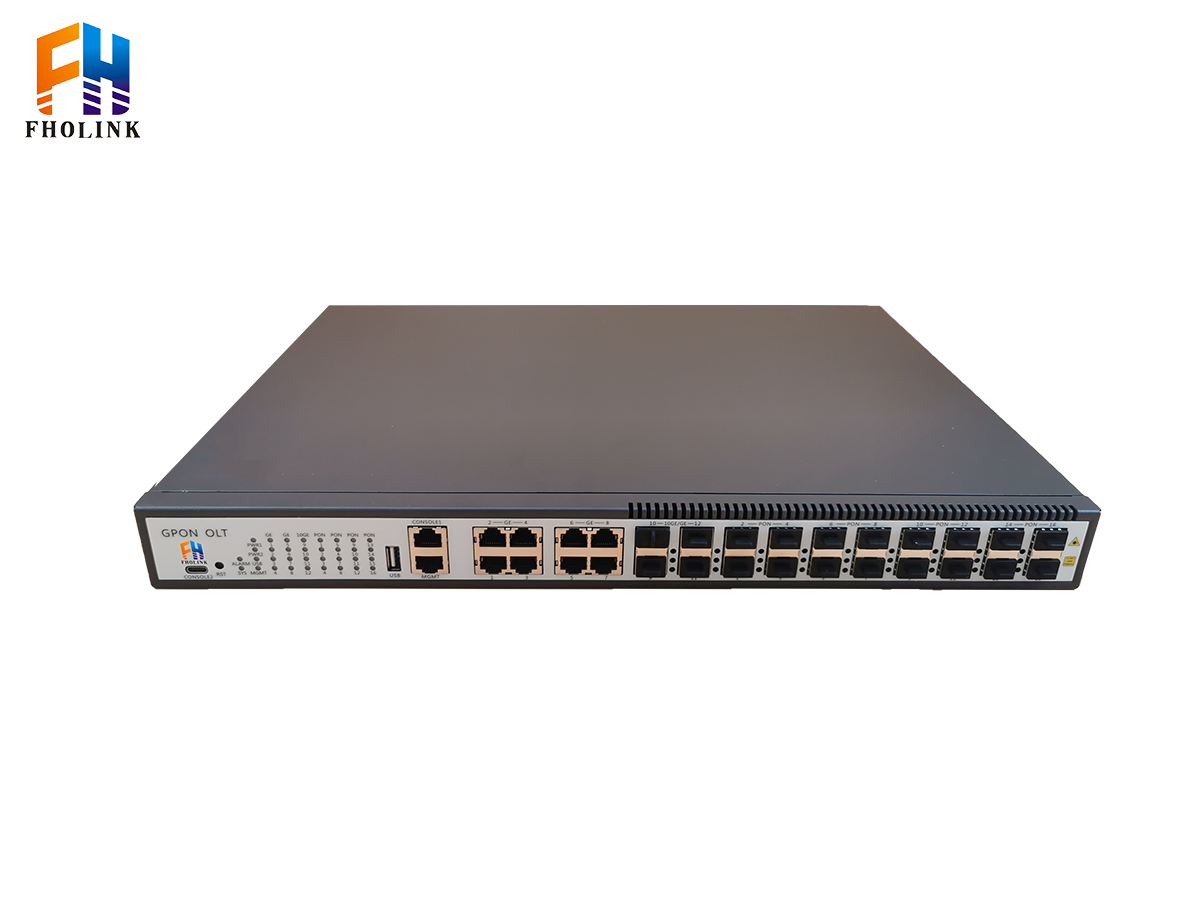

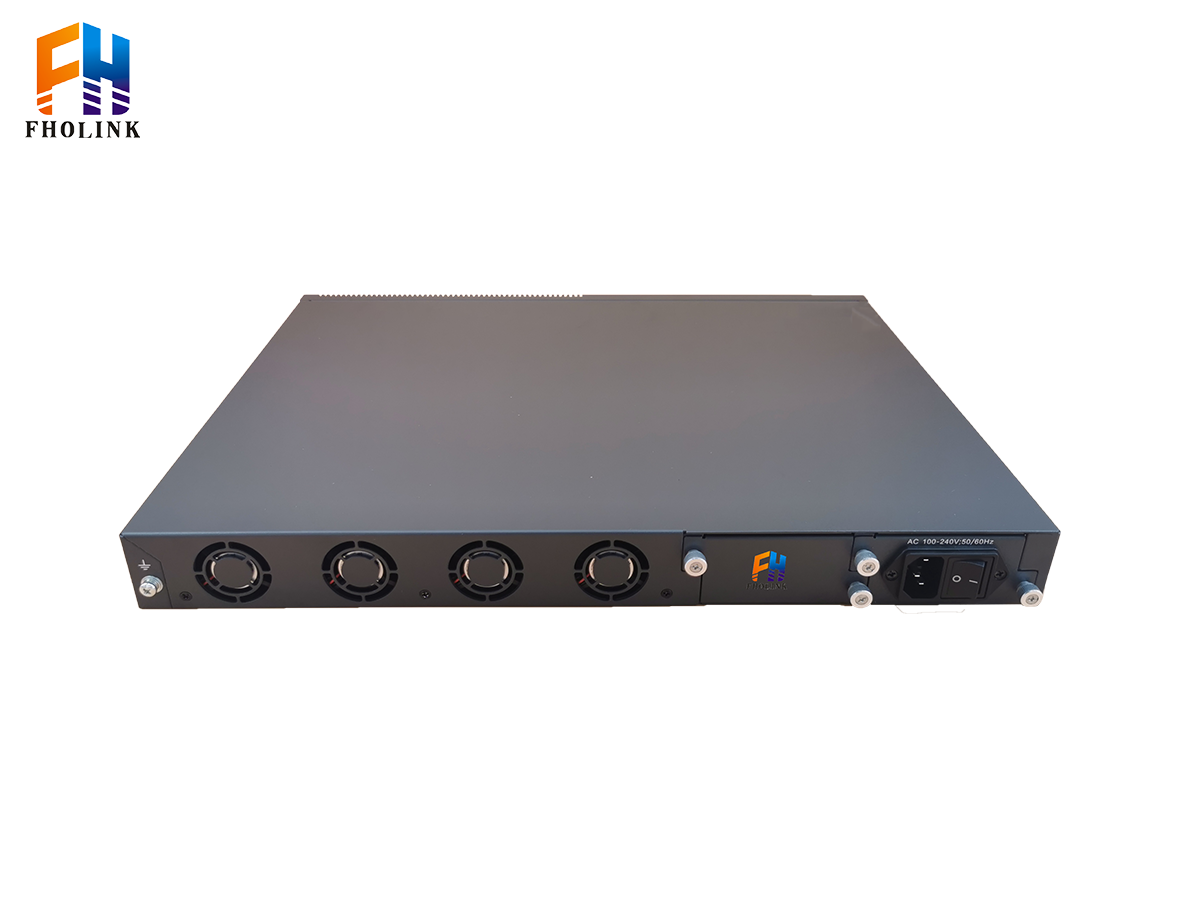

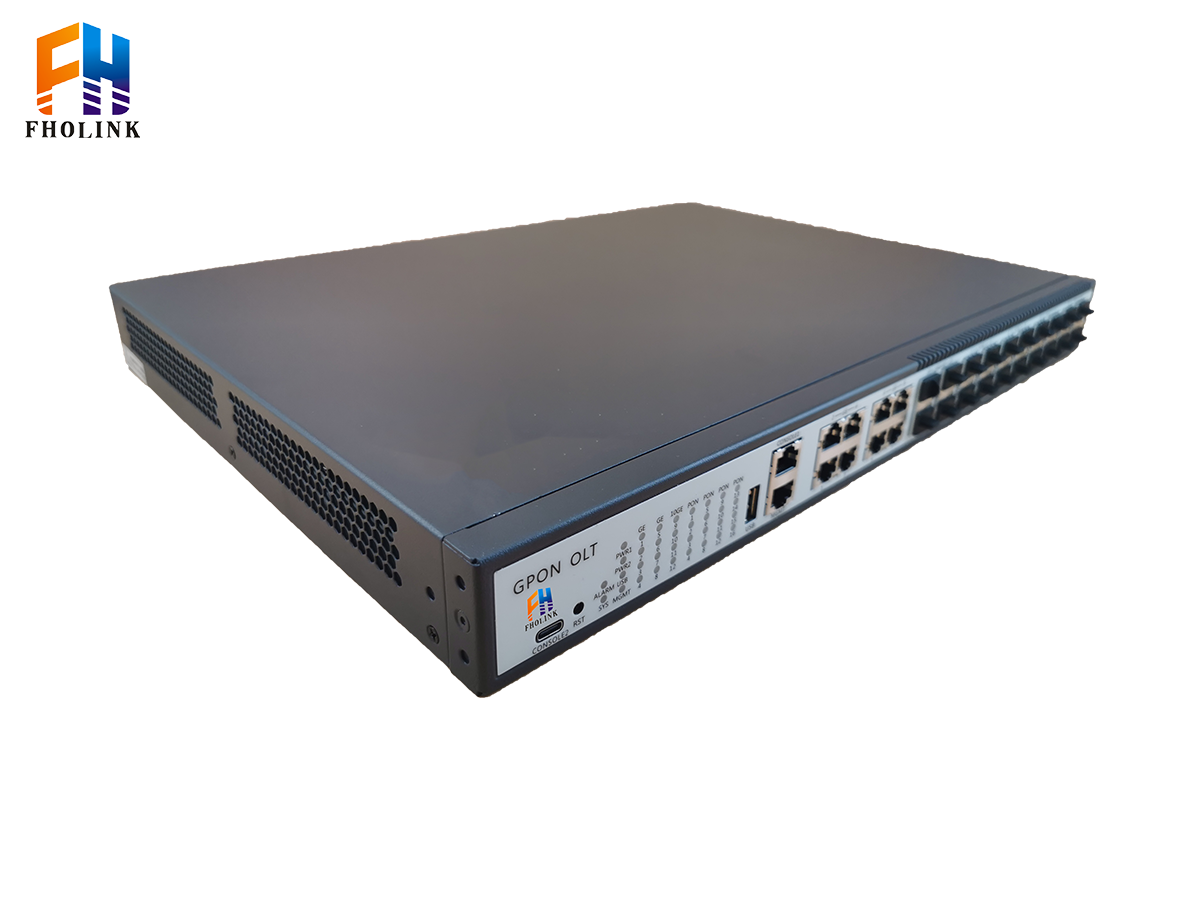

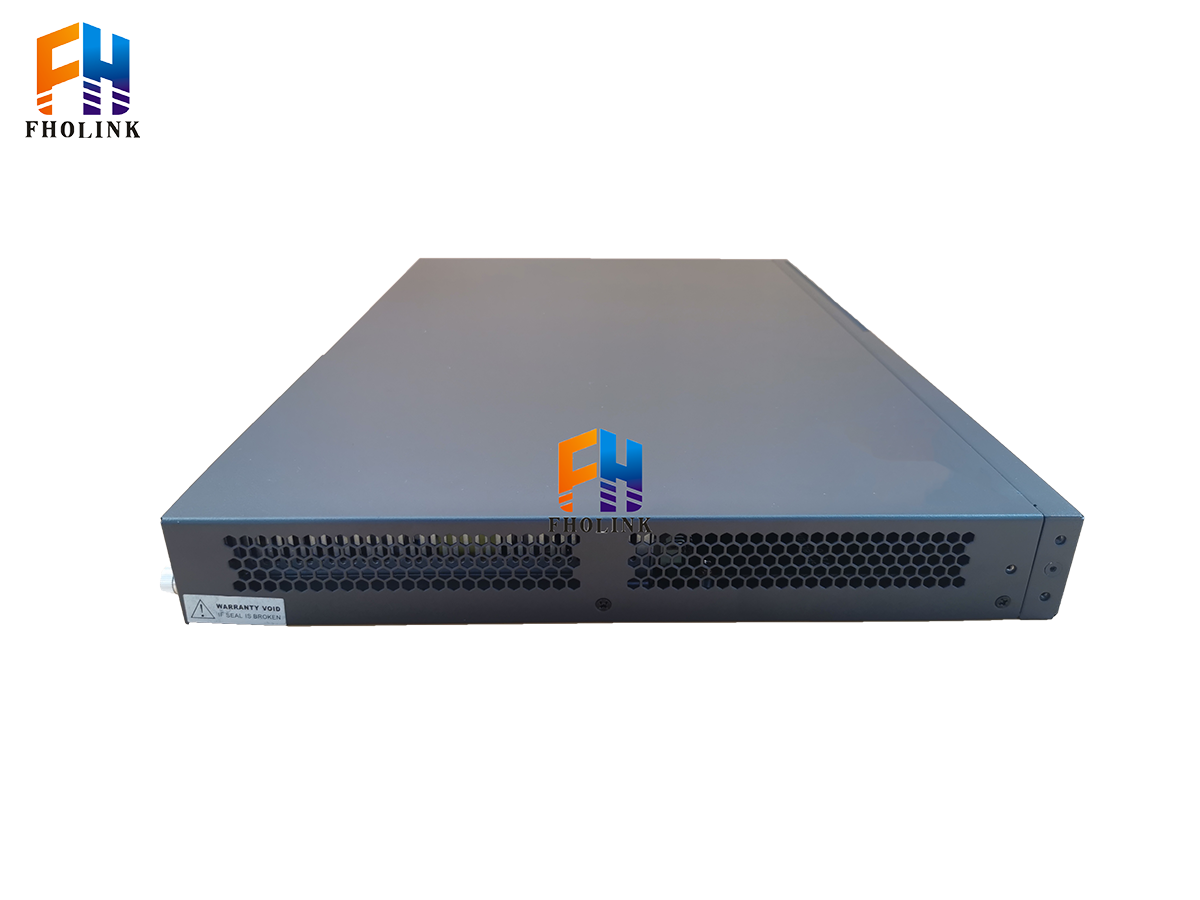

GPON OLT Equipment FH-GOLT-16P-4M8T
Product Overview
The OLT (Optical Line Terminal) is a critical central office equipment that connects to front-end (aggregation layer) switches via Ethernet cables, converts electrical signals into optical signals, and interconnects with optical splitters at the user end through a single fiber. It enables control, management, and ranging of user-end ONUs and, like ONU devices, integrates both optical and electrical functionalities.
Fuhong Guangtong Technology offers a range of OLT devices, including GPON OLT, EPON OLT, XGS-PON OLT, and 10G EPON OLT, widely deployed in carrier access networks, campus networks, smart commercial centers, and other scenarios.
Technical Parameters
| FHOLINK GPON OLT Equipment | |
| Product Model | FH-GOLT-16P-4M8T |
| PON Ports | 16×GPON SFP ports;Uplink: 1.244 Gbps;Downlink: 2.488 Gbps |
| Uplink Ports | 4×10G SFP/SFP+ optical ports;8×Gigabit RJ45 electrical ports |
| Management Ports | 1×10/100/1000BASE-Tx out-of-band Ethernet port (MGMT);1×CONSOLE local management port |
| Backplane Bandwidth | 516Gbps |
| Forwarding Rate (Throughput) | 124.992Mpps |
| Network Management | Supports SNMP, Telnet, CLI, WEB management |
| Chassis | 1U rack-mountable, 440mm×44mm×380mm (W×H×D) |
| Power Supply | Dual power supply (AC: 100–240V / DC: –48V optional) |
Applications
1. Carrier access networks
2. All-optical campus networks, smart scenic areas, smart parks, and other industry-specific smart networks
3. Wireless access for commercial centers and supermarkets
4. Wireless access for buildings
5. Household wireless access
-
