FTTx High-Power Fiber Amplifier
Product Overview
The High-Power Erbium-Ytterbium Co-doped Fiber Amplifier (HP-EDFA) is a low-noise, high-performance optical amplifier designed for robust signal enhancement in modern fiber optic networks. Each output port can be equipped with an integrated CWDM multiplexer (1310/1490/1550 nm), allowing easy combining of OLT and ONU data streams directly through the 1310 nm and 1490 nm optical interfaces into the amplifier’s output. This integration reduces the number of discrete components, improves system performance and reliability, and makes the HP-EDFA an ideal solution for FTTx networks. It offers a flexible, cost-efficient approach to supporting triple-play services and Fiber-to-the-Home (FTTH) deployments.
Features
1. Erbium-Ytterbium co-doped double-clad fiber technology
2. Output ports: 4 to 64 configurable channels
3. Output optical power: up to 10W total output
4. Low noise figure: below 5 dB at 0 dBm input
5. Comprehensive network management interface compliant with Chinese national SNMP standards
6. Intelligent temperature control system for reduced power consumption
Technical Parameters
| FTTx High-Power Fiber Amplifier | ||||
Equipment Name |
Model | Specifications | Power Consumption (W) | Dimensions (mm) |
| 4*18 High Power Fiber Amplifier | FH-EYA-4-18-R | FTTx Multi-Port High-Power Erbium-Ytterbium Co-Doped Fiber Amplifier - Single input port with 4 output ports - 18 dBm output power per port - Supports WDM multiplexing at 1310 & 1490 nm wavelengths - Dual power supply (configurable) - Built-in network management capabilities - 1U rack-mountable chassis - Standard SC/APC input/output interfaces |
70 | 483(L)×460(W)×44(H) |
| 8*22 High Power Fiber Amplifier | FH-EYA-8-22-R | FTTx Multi-Port High-Power Erbium-Ytterbium Co-Doped Fiber Amplifier - Single input port with 8 output ports - 22 dBm output power per port - Supports WDM multiplexing at 1310 & 1490 nm wavelengths - Dual power supply (configurable) - Built-in network management capabilities - 1U rack-mountable chassis - Standard SC/APC input/output interfaces |
70 | 483(L)×460(W)×44(H) |
| 16*22 High Power Fiber Amplifier | FH-EYA-16-22-2R | FTTx Multi-Port High-Power Erbium-Ytterbium Co-Doped Fiber Amplifier - Single input port with 16 output ports - 22 dBm output power per port - Supports WDM multiplexing at 1310 & 1490 nm wavelengths - Dual power supply (configurable) - Built-in network management capabilities - 2U rack-mountable chassis - Standard SC/APC input/output interfaces |
70 | 483（L）X440（W）X 88（H） |

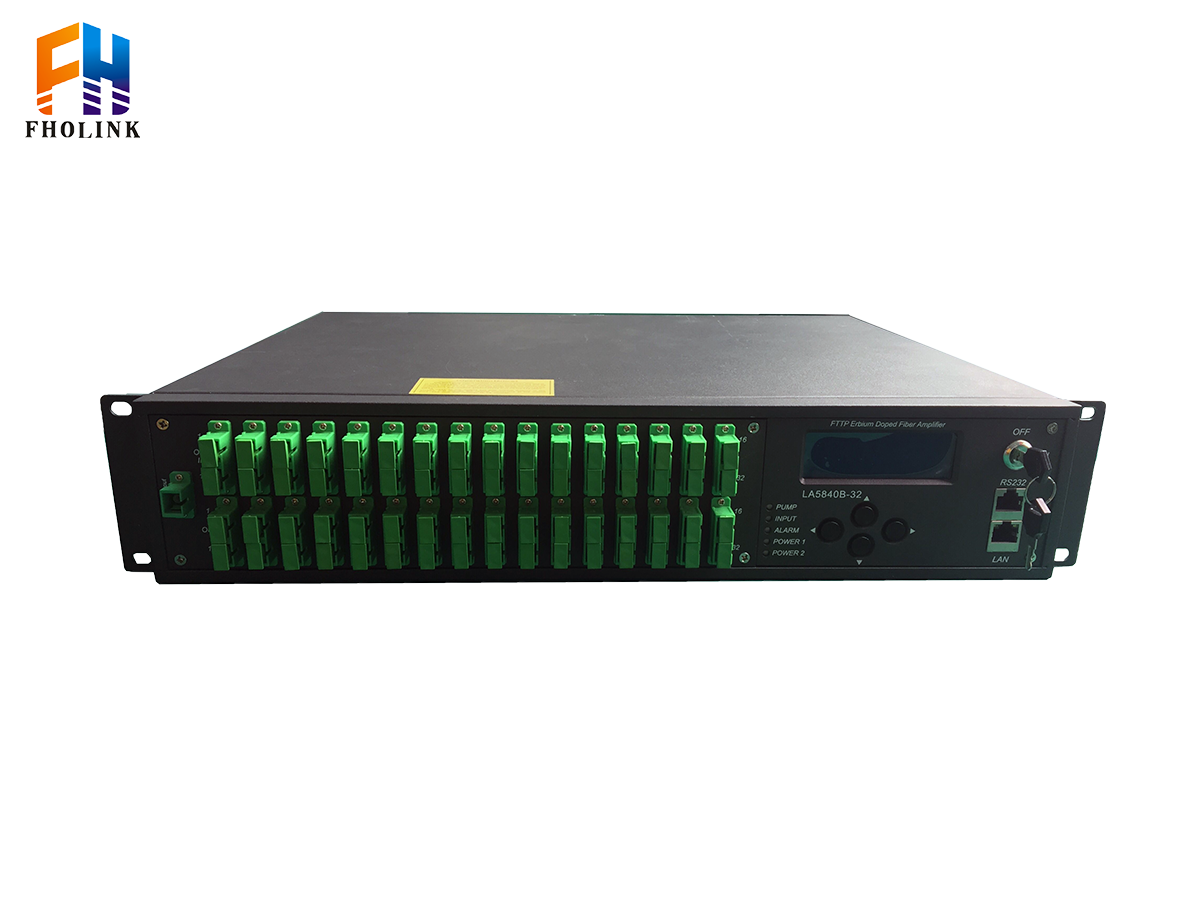

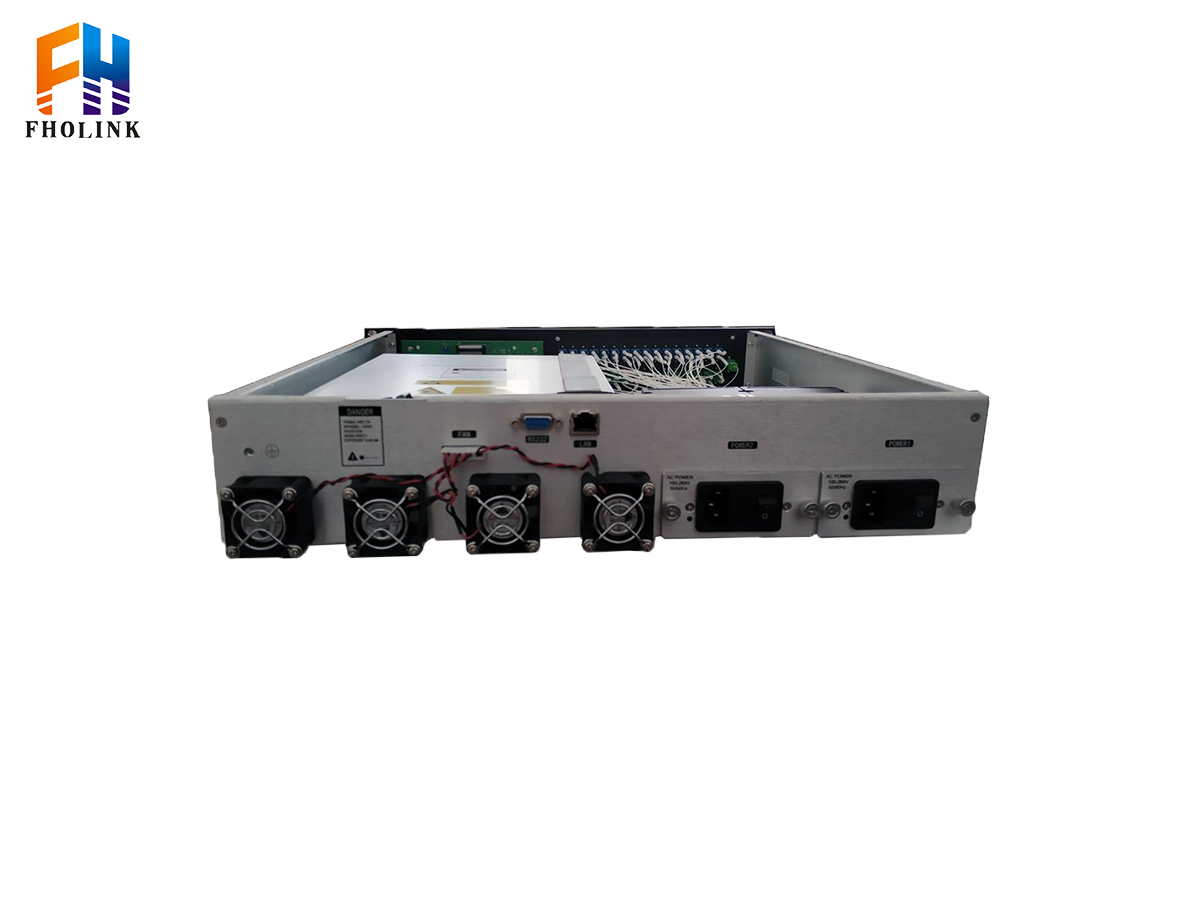

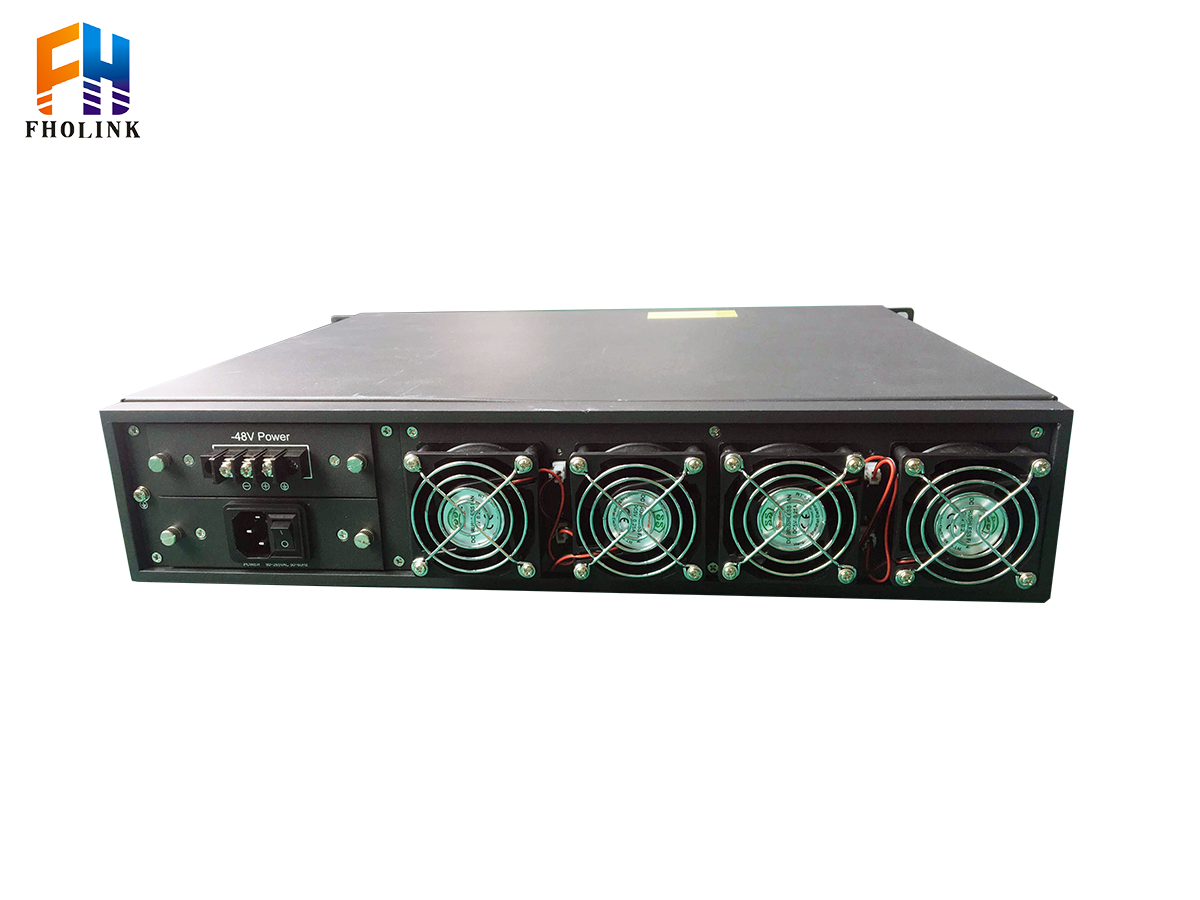

| 32*19 High Power Fiber Amplifier | FH-EYA-32-19-2R | FTTx Multi-Port High-Power Erbium-Ytterbium Co-Doped Fiber Amplifier - Single input port with 32 output ports - 19 dBm output power per port - Supports WDM multiplexing at 1310 & 1490 nm wavelengths - Dual power supply (configurable) - Built-in network management capabilities - 2U rack-mountable chassis - Standard SC/APC input/output interfaces |
70 | 483（L）X440（W）X 88（H） |
| More Customization | ||||
Applications
1. 1550 nm amplified single-mode fiber networks
2. FTTH (Fiber-to-the-Home) networks
3. CATV networks
-
