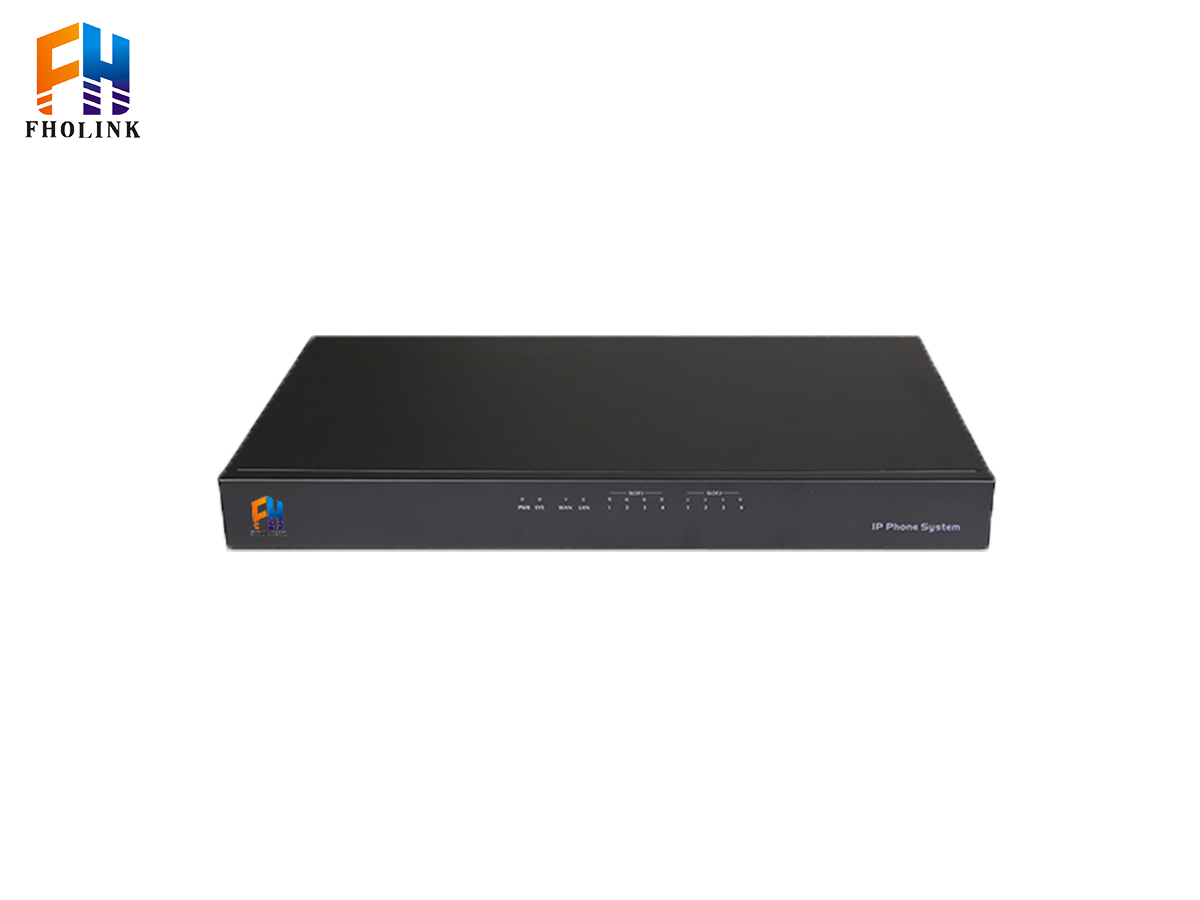

Voice Gateway FH-VG500
Product Overview
A voice gateway is a device that converts voice signals between different networks or protocols, primarily enabling communication between fixed-line, mobile networks, and IP networks.
The FH-VG2000 is an ideal converged communication solution for medium-to-large enterprises and hotels. It supports up to 2000 SIP extension registrations, 200 concurrent calls, 200 concurrent conference participants, and over 15,000 hours of ultra-long call recording duration. These capabilities make the FH-VG2000 well-suited for enterprise users with high call volumes and demanding requirements for IP voice exchange performance and stability.
Features
1. One number with multiple devices
2. Extension user interface
3. Quick installation wizard
4. Email notification function
5. Zero configuration for phone terminals
6. Zero configuration for extension expansion boxes
Technical Parameters
| Voice Gateway FH-VG500 Technical Parameters | |
Category |
Specifications |
| Hardware Specifications | 2.41 GHz Dual-core Intel Processor | 4 GB DDR3L RAM | 16 GB embedded EMMC + 500 GB surveillance-grade HDD |
| HDMI multimedia interface | Audio input/output interface (for broadcasting) | 2 Gigabit Ethernet ports | 1 USB 3.0 port + 1 USB 2.0 port | 2 module slots | Power input: AC 100-240 V, 50/60 Hz, max. 1.5 A | |
| System Capacity | 500 extension registrations | 100 concurrent calls | 80 concurrent conference parties | 36 call queues | 36 conference rooms | Up to 7,500 hours of WAV format recording | Up to 75,000 hours of GSM format recording |
| Physical Specifications | Chassis dimensions: 440 × 222 × 44 mm | Package dimensions: 500 × 310 × 90 mm | Chassis weight: 2.66 kg | Package weight: 4.5 kg |
| Environmental Requirements | Operating temperature: 0 °C to 40 °C | Storage temperature: -20 °C to 55 °C | Operating humidity: 5% to 95% non-condensing |
Applications
1. Carrier access networks
2. Converged communication systems for enterprises of all sizes
3. Hotel integrated communication systems
4. All-optical campus networks, smart scenic areas, smart parks, and other industry-specific smart networks
5. Wireless access for commercial centers and supermarkets
6. Wireless access for buildings
-
