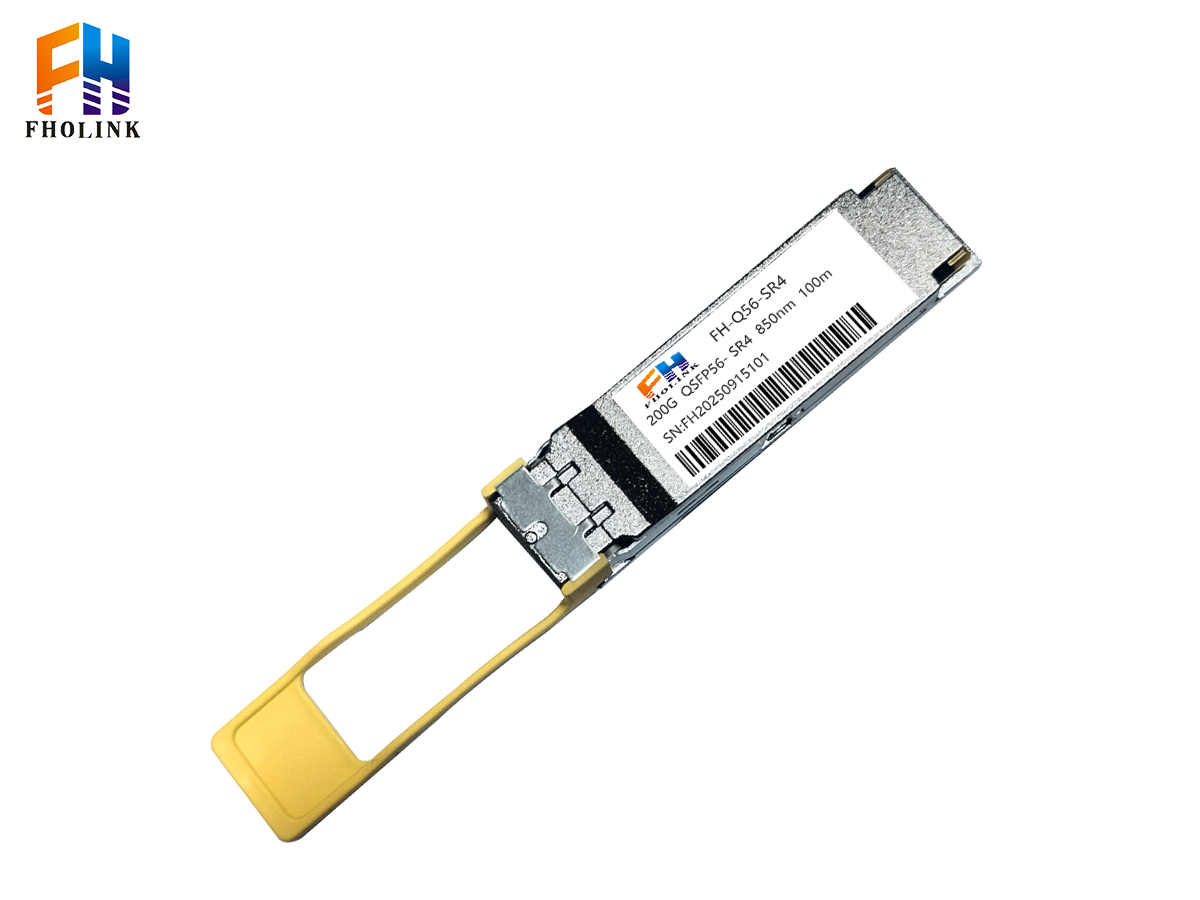

200G QSFP56 SR4 Optical Transceiver, 100m over MMF, MPO Interface
Product Overview
With the rapid advancement of AI technology, computational demands continue to expand, and cloud computing requires massive server resources for real-time processing. The need for high-speed optical modules has surged accordingly.
Fholink introduces high-speed optical modules, including 200G, 400G, and 800G variants, to meet these growing demands.
Features
1. Hot-pluggable QSFP56 form factor.
2. Supports 200G BASE Ethernet.
3. Maximum data rate of 212.5 Gb/s.
4. Compatible with major brands of switches and servers.
5. Transmission distances of 70m (OM3), 100m (OM4 or OM5).
6. Low power consumption, single +3.3V power supply.
7. Full metal housing for excellent EMI performance.
8. Operating temperature: 0°C to +70°C (case temperature).
9. Digital Diagnostic Monitoring (DDM) support.
10. RoHS compliant (lead-free).
Technical Parameters
| 200G 系列 | |||||||||
| 名称 Product Name |
型号 model number |
速率 Data Rate |
波长(nm) Wavelength |
距离 Distance |
光功率(dBm) Optical Power |
发射激光器 Source |
灵敏度(dBm) Sensitivity |
接收激光器 Receiver |
接口类型 Connector type |
| 200G QSFP56- SR4 | FH-Q56-SR4 | 200Gb/s | 850 | 100m | -6.5~4 | VCSEL | -6 | PIN | （Multimode） MPO-12 |
Applications
1. Ultra-high-speed Ethernet networks.
2. High-performance computing clusters.
3. High-end switches.
4. High-end servers.
5. High-density connections between other network devices.
-
