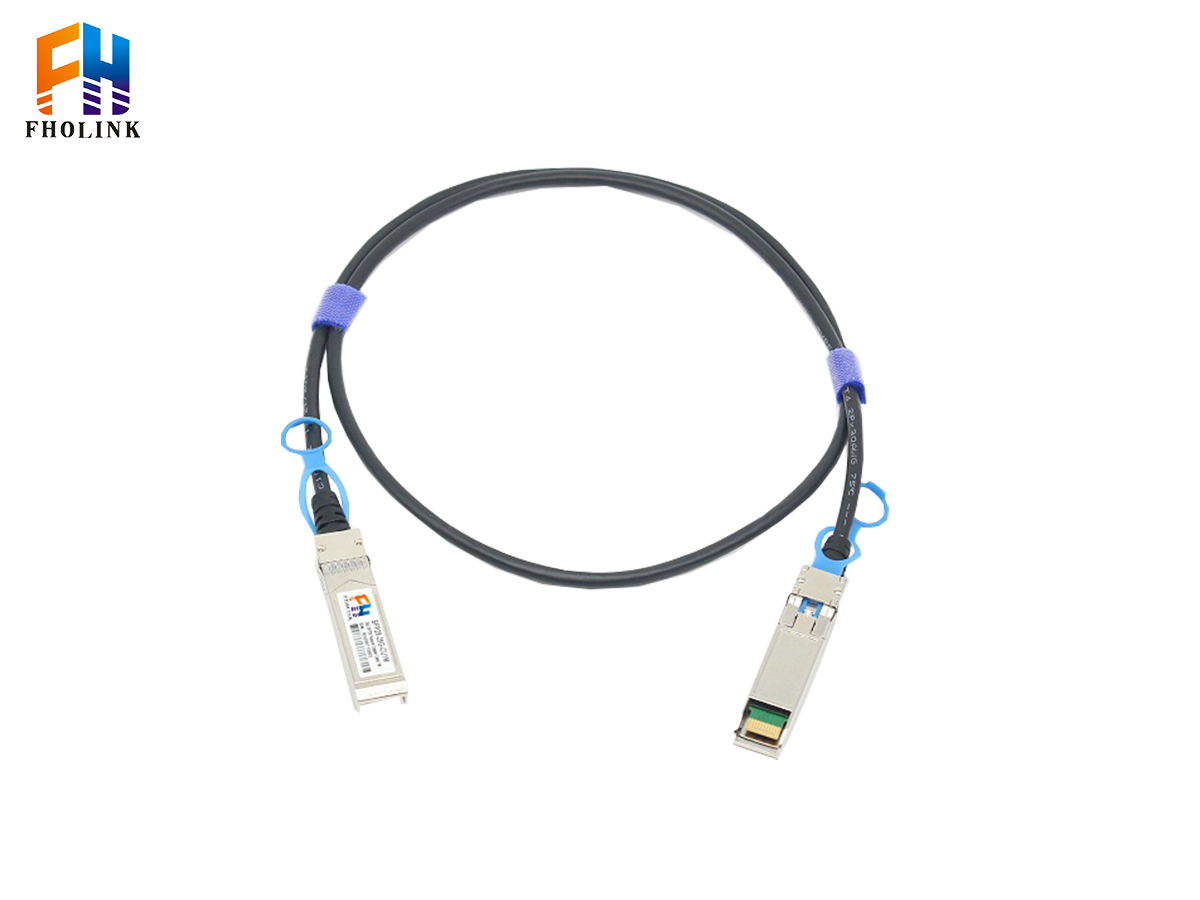

25G DAC (Direct Attach Copper Cable )
Product Overview
DAC (Direct Attach Copper) high-speed cables consist of two optical modules and a segment of copper cable.
The SFP28 high-speed cable provides a high-performance, cost-effective I/O solution for 25GbE and 10G Fibre Channel applications, enabling high port density, configurability, and utilization at very low cost while reducing power budgets. Its transmission distance can reach up to 5 meters.
Features
1. Hot-pluggable
2. Supports 25G rate with backward compatibility to 10G
3. I/O connector designed for high-speed differential signal applications
4. Improved Pluggable Form Factor (IPF) compatible with enhanced EMI/EMC performance
5. Operating temperature: 0 to 70℃
6. Digital Diagnostic Monitoring (DDM) support
7. RoHS compliant (lead-free)
Technical Parameters
| Fholink 25G SFP28 Direct Attach Copper Cable | |
| Product Model | FH-25G-DAC-xx |
| Data Rate | 25G |
| Transmission Distance | Length: Customizable from 1 to 5 meters |
| Form Factor | SFP28 to SFP28 |
| Cable Type | 30AWG/24AWG |
| Compatible Brands | Compatibility Code: Customized per customer's equipment |
| Cable Material | PVC |
| Power Consumption | 0.5W |
Applications
1. Switch interconnections within the same data center
2. Server interconnections within the same data center
3. Server-to-switch connections within the same data center
4. High-capacity I/O in Storage Area Networks, Network Attached Storage, and storage servers
5. Data center cabling infrastructure
6. High-density connections between other network devices
-
