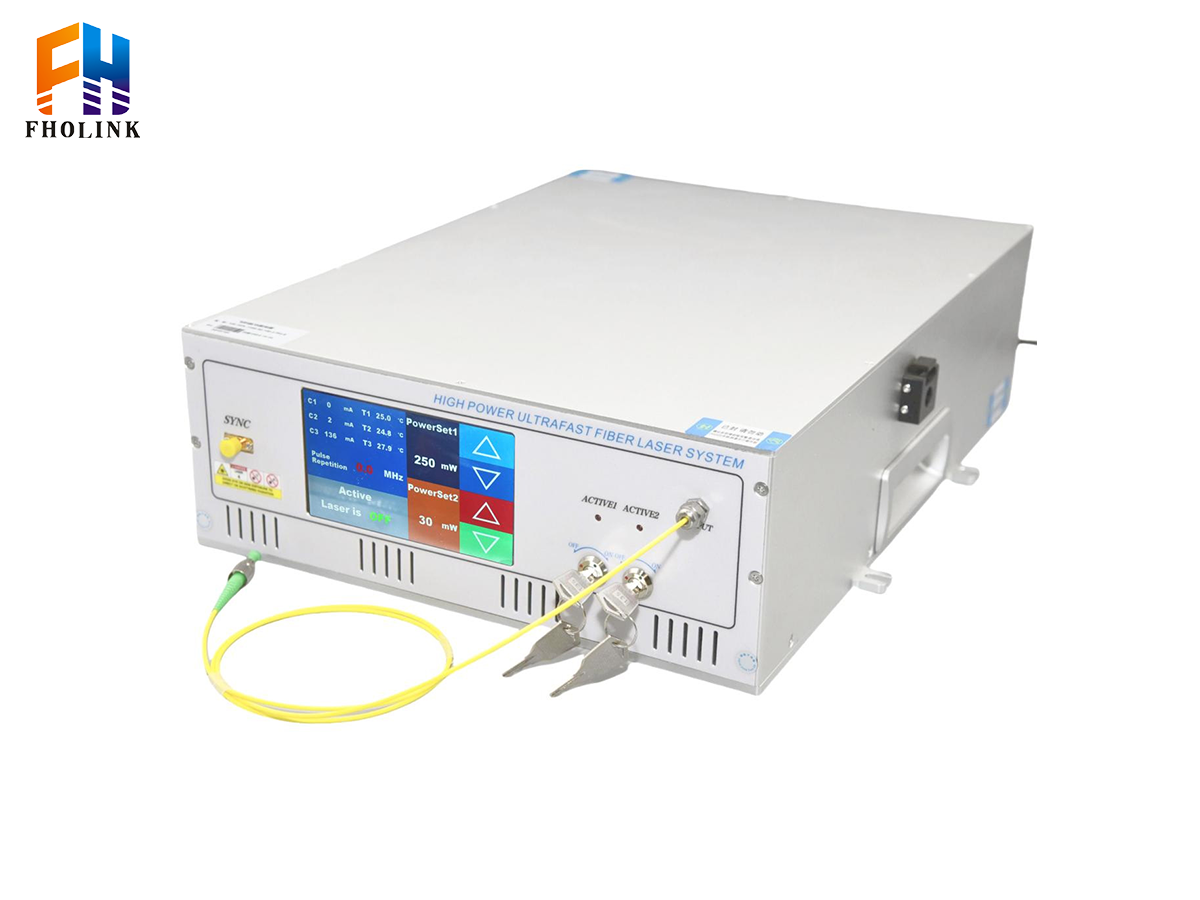

1560 nm Band High-Power Femtosecond Pulsed Fiber Laser
Product Overview
Fholink's E-Fiber Series High-Power Ultrafast Laser integrates the latest femtosecond laser technology. Utilizing high-performance rare-earth-doped fiber as the gain medium, combined with high-precision dispersion compensation technology and an active servo control system, it achieves stable output of 1.5 μm band femtosecond pulsed laser with an average power of 1 watt. It features one-button self-starting upon power-on for long-term stable operation and is characterized by extremely narrow laser pulse width and high peak optical pulse power. It has wide-ranging applications in fields such as optical frequency combs, supercontinuum generation, and Terahertz (THz) waves.
Customization of pulse width, power, repetition rate, and other parameters is available.
Product Features
1. Pulse width: 120 fs.
2. Average laser power: 1 W.
3. Self-starting and maintenance-free.
4. High stability.
Technical Parameters
| Parameter | Unit | Typical Value | Remarks |
| Center Wavelength | nm | 1560±10 | |
| Pulse Width | fs | ≤120 | Customizable |
| Average Laser Power | W | 1 | Customizable |
| Power Instability | - | < ±1% | 24h@25°C |
| Repetition Rate | MHz | 80~100 | Customizable |
| Single Pulse Energy | nJ | >10 | |
| Laser Polarization State | - | Linear Polarization，DOP>20dB | Vertical Polarization |
| Laser Output Mode | - | Free Space Beam | |
| Beam Quality | - | M2<1.2 | TEM00 |
| Beam Diameter | mm | ≤1.6 | * 1/e2 Waist Diameter |
| Beam Divergence Angle | mrad | <1.5 | |
| Package Form | / | Benchtop |
Product Applications
1. University and Scientific Research.
2. Optical Frequency Combs.
3. Supercontinuum Generation.
4. Terahertz (THz) Waves.
5. Ultrafast Laser Phenomena.
-
