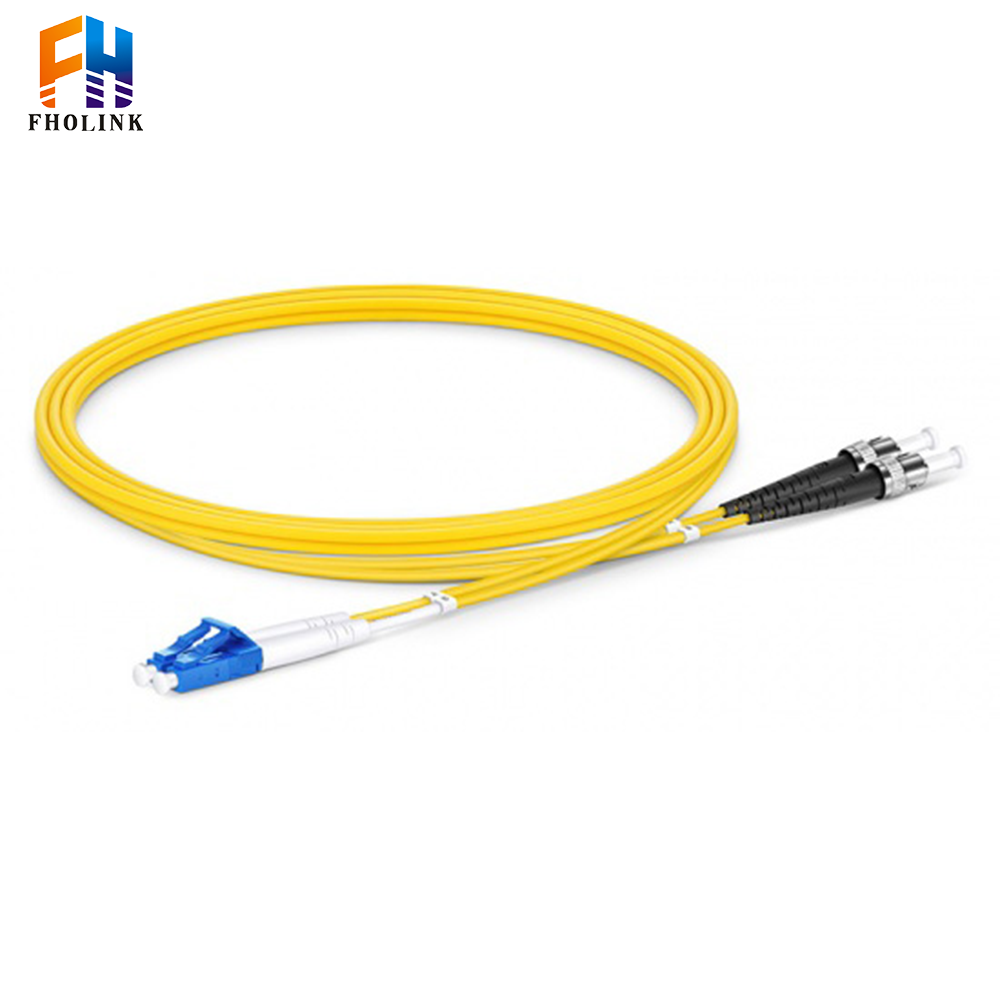

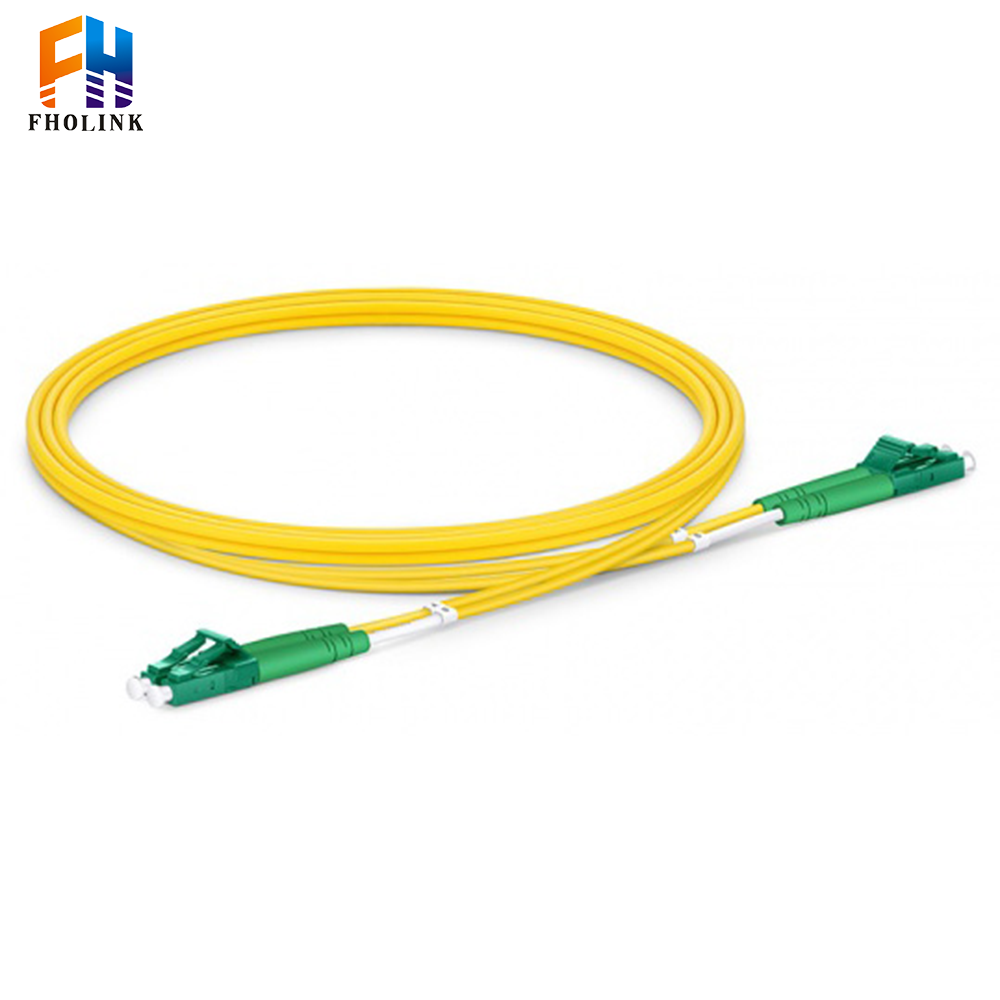

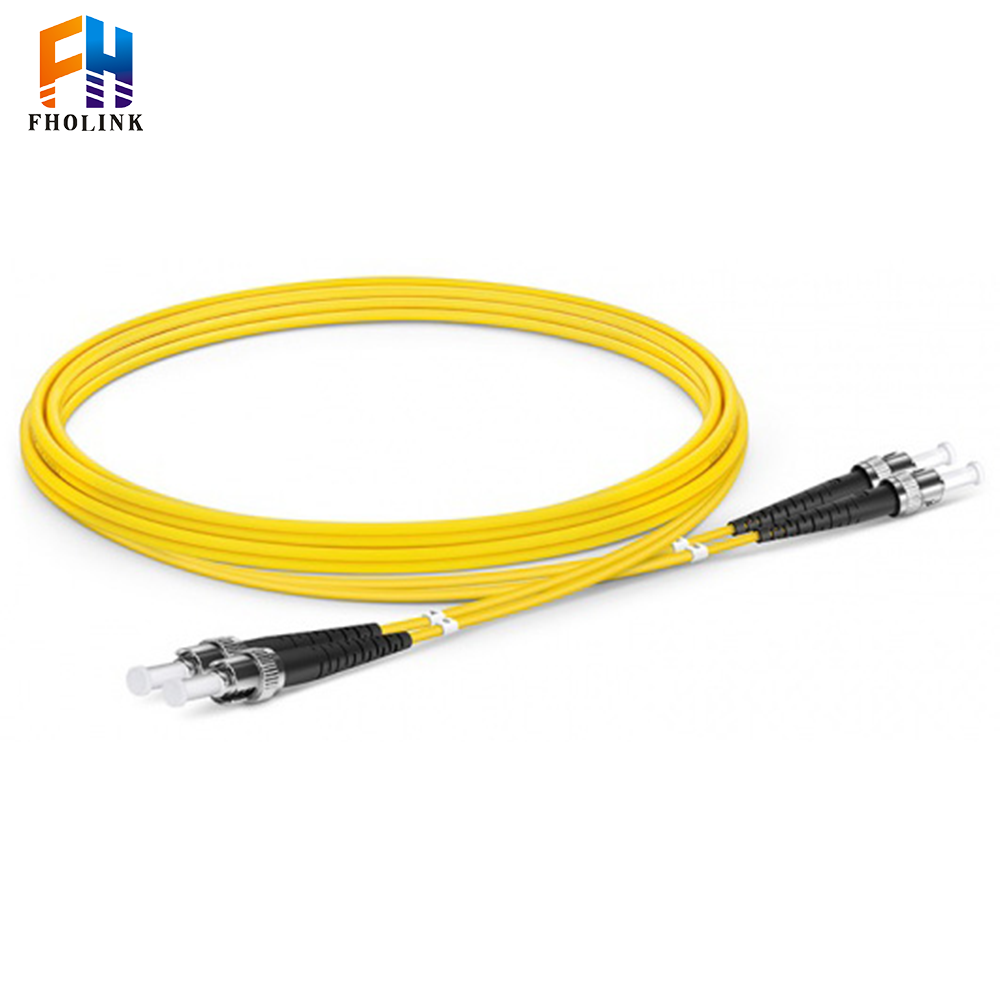

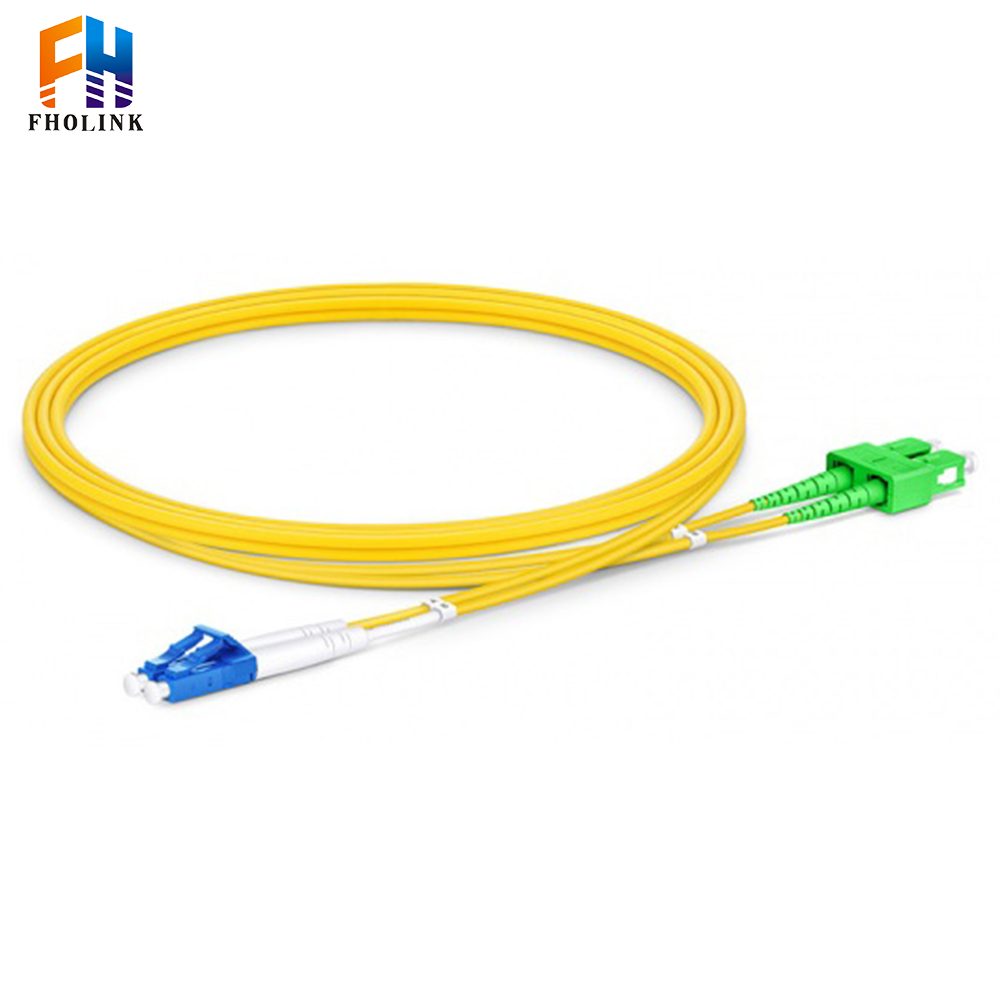

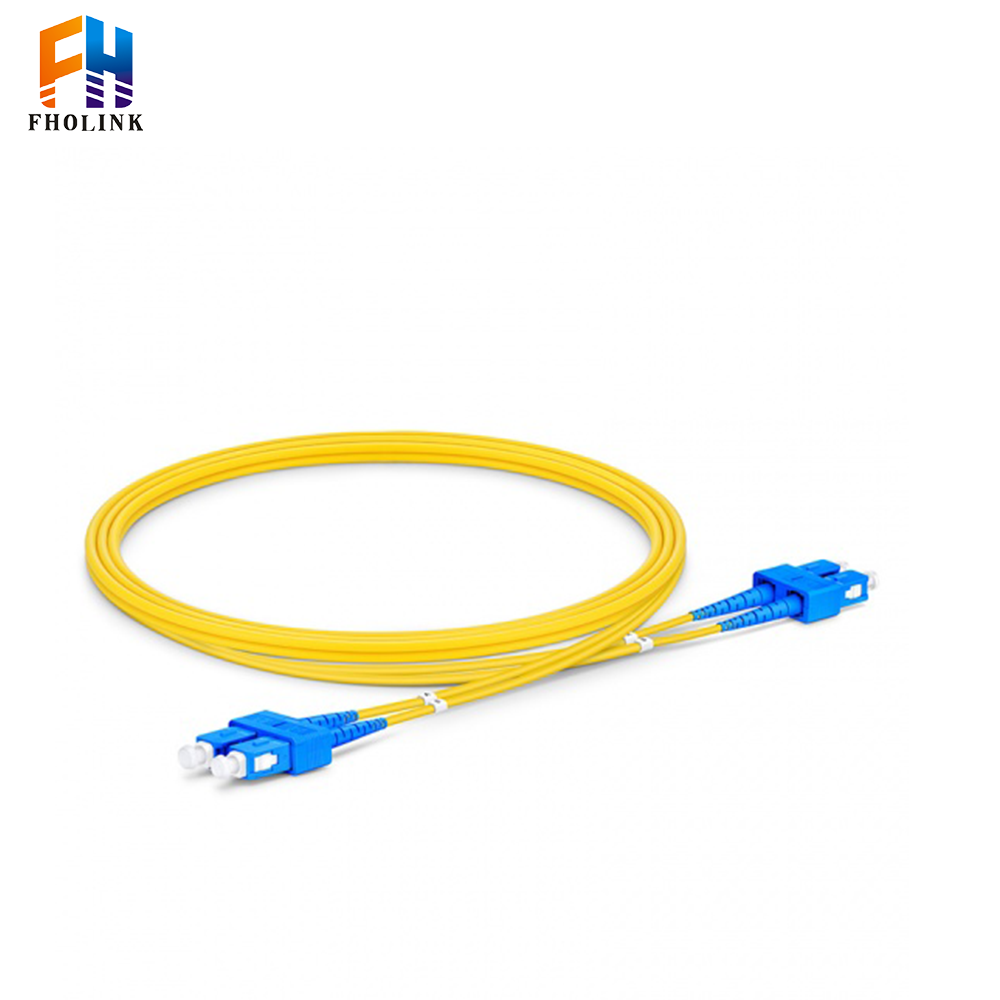

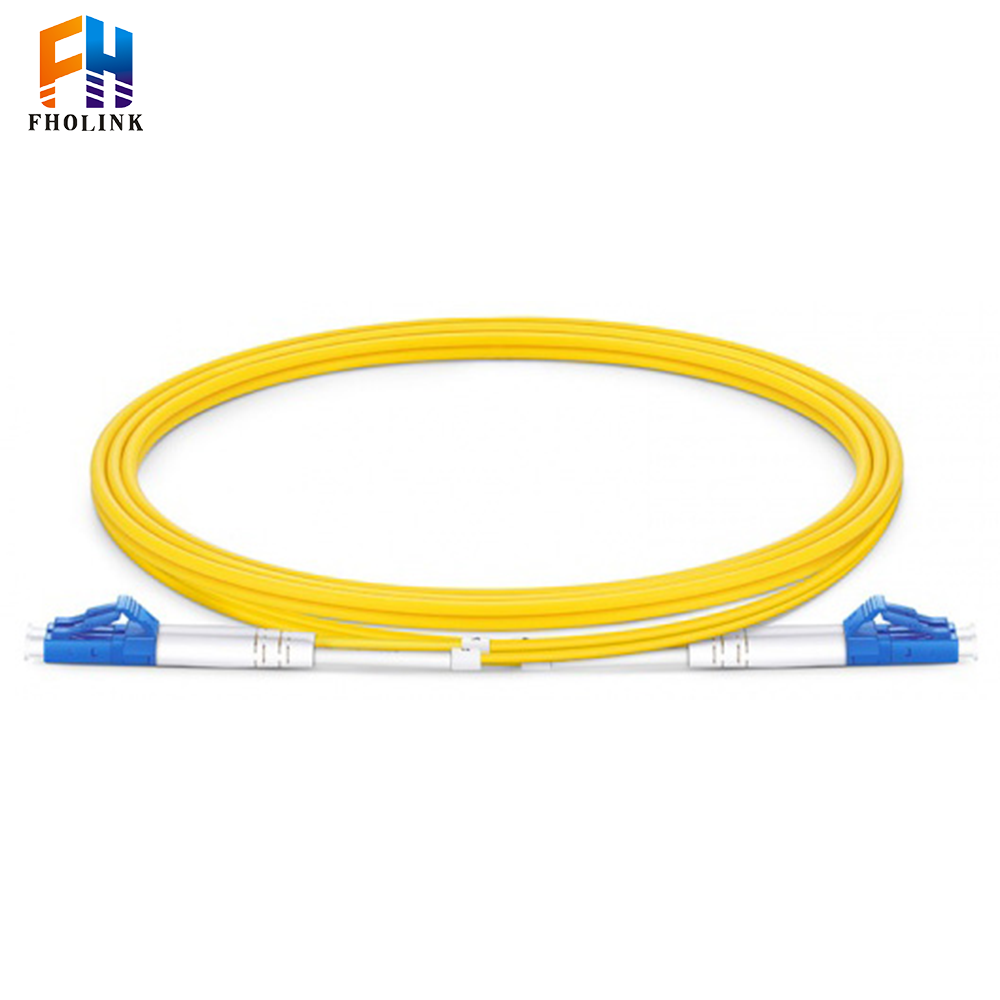

Single-mode Duplex Patch Cord
Fiber optic patch cords can be classified into single-mode and multi-mode types based on the fiber type:- Single-mode Fiber (SMF): The cable jacket is typically yellow.
Types include single‑fiber (simplex) and dual‑fiber (duplex) single‑mode patch cords.
Product Overview
Fiber optic patch cords consist of a section of optical fiber cable with connectors on both ends. They are common interconnection cables in fiber optic communication systems.
Fiber optic patch cords can be classified into single-mode and multi-mode types based on the fiber type:
- Single-mode Fiber (SMF): The cable jacket is typically yellow. Types include single‑fiber (simplex) and dual‑fiber (duplex) single‑mode patch cords.
- Multi-mode Fiber (MMF): The cable jacket is typically orange. Types include single‑fiber (simplex) and dual‑fiber (duplex) multi‑mode patch cords.
Product Features
1. Compliant with IEC, Telcordia GR-326-CORE, and YD‑T 1272.3‑2005 standards.
2. Low insertion loss, high return loss.
3. High‑density connectivity, easy handling.
4. High stability and reliability.
5. Excellent repeatability and interchangeability.
Product Applications
1. Fiber optic communication systems
2. Telecom operators
3. Fiber optic CATV
4. Fiber access networks
5. Campus networks
6. Data center interconnect
7. Fiber optic data transmission
8. Intra‑equipment connections
9. Local Area Networks (LAN)
10. Test equipment
11. Fiber optic sensors
Technical Specifications
| Single-mode Duplex Patch Cord | |||
| Connector | LC / SC / FC / ST (customizable) | Fiber End Face | PC/UPC/APC |
| Connector Boot | 0.9 / 2.0 / 3.0 mm optional | Fiber Type | SM 9/125μm |
| Fiber Length | 2 m (customizable: 0.5, 1, 3, 5, 10, 15 m, or other) | Fiber Count | Duplex |
| Insertion Loss | ≤0.3dB | Wavelength | 1310/1550nm |
| Fiber Class | G.657.A1/G.652.D | Minimum Bend Radius (Fiber Core) | 10mm/20mm |
| Attenuation (at 1310 nm) | ≤0.36dB/km | Attenuation(1550nm) | ≤0.22dB/km |
| Outer Jacket Material | PVC/LSZH | Return Loss | ≥50dB |
| Operating Temperature | ﹣20°C ~ +70°C | Storage Temperature | ﹣40°C ~ +80°C |
-
